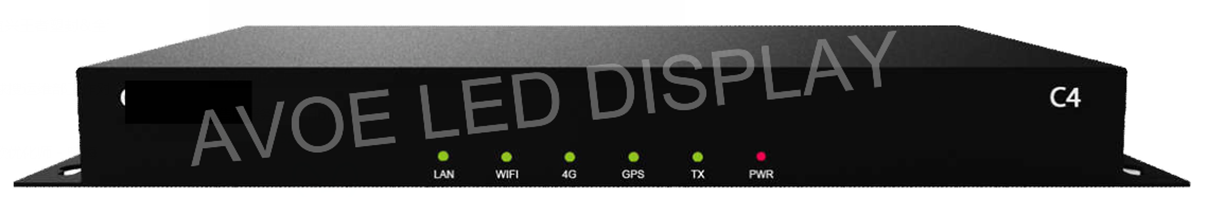

C4 Player
Intelligent transportation introduces new technologies, represented by the Internet of things and cloud computing, and establishes a comprehensive transportation system within a larger space and time scope. The traffic sign LED screen is connected to the data center to release traffic guidance information timely, improving the traffic efficiency and reducing environment pollution, making the traffic management more informationize and intelligent.
High reliability
·Industrial hardware for outside working
·Stable 4G network
·Device abnormal monitoring alarm
Information Security
·Channel encryption, Two-factor authentication technology
·Strict release control audit system
·National security level III certification
Secondary Development
·Open API, support access to existing
traffic management system
·Real-time road data display
Environment Monitoring
·Intelligent brightness adjustment, energy-efficient and environment friendly
·Detect temperature\humidity\AQI etc.
·Display environment data in real time, react automatically and report to data center.
C4 can connect to Internet through LAN/WiFi/4G. Based on Colorlight Cloud Server, C4 can rapidly achieve unified management of multiple screens and multi-services across regions.
C4 possesses powerful functions including equipment monitoring, program edition, scheduling and cluster publishing, multi-level authorization management, programs are published after review.
C4 support multiple play windows and windows overlap, size and location can be freely set.
C4 can be set as AP Mode, supports program management and parameters setting via smartphone, tablet, PC, etc.
C4 supports GPS precise timing to achieve synchronization of multiple screens.
C4 comes with brightness sensor, it supports monitoring of working temperature and brightness, and automatic adjustment of screen brightness.
C4 has 8G build-in storage, 5G available for users; it supports USB storage, Plug&Play.
C4 has many advantages in applications of advertising screens and exhibition screens.
| Basic Parameters | |
|
Core Chip |
1.6GHz quad-core CPU; 600Mhz quad-core GPU; 1GB DDR3
1080P HD hardware decoding |
|
Loading Capacity |
Maximum loading capacity: 650000 pixels;
Maximum width: 4096 pixels, maximum height: 1536 pixels |
| Receiving Card
Supported |
All Colorlight receiving cards |
| Interfaces | |
| Audio Output | 1/8″ (3.5mm)TRS |
|
USB Ports |
USB2.0*2, support external storage (U disc, 128G in maximum) or
communication equipment |
| Gigabit Ethernet | Output signal to receiving cards |
| 100M LAN | Access network |
| WiFi | 2.4G/5G dual-band; support AP mode and station mode |
| 4G (Option) | Access internet |
| GPS (Option) | Precise positioning, precise timing, synchronization of multiple screens |
| Physical Parameters | |
| Dimension | 205.4*107.5*23mm |
| Working Voltage | DC 12V |
| Rated Power | 10W |
| Weight | 0.5kg |
| Working
Temperature |
-25℃~80℃ |
| Environmental
Humidity |
0-95% without condensation |
| File Format | |
|
Program Split |
Support flexible program windows split, support flexible windows overlapping,
support multiple programs play |
|
Video Formats |
Common formats such as AVI, WMV, MPG, RM/RMVB, MOV, DAT, VOB, MP4,
FLV and etc.; support multiple videos play at the same time |
| Audio Formats | MPEG-1 Layer III，AAC etc. |
| Image Formats | bmp, jpg, png, etc. |
| Text Formats | txt, rtf, word, ppt, excel etc. |
| Text Display | Single line text, static text, multiple line text, etc. |
|
Screen Split |
4 video windows, multiple picture/text windows, scrolling text, Logo, date/time/week. Flexible screen split can be achieved and different contents
display in different area |
|
OSD Supported |
Support video/picture/text mixture or overlap with fully transparent, opaque,
translucent effects |
| RTC | Support real time clock |
| Terminal Management & Control | |
| Communication | LAN/WiFi/4G |
| Program Update | Update program through USB or network |
| Management
Devices |
Smart terminals like PC, Android, iOS and etc. |
| Automatic Brightness
Adjustment |
Timing automatic adjustment; Environmental automatic adjustment |
| Timing Play | Play according to scheduled programs |
| Software | LEDVISION 5.0 or higher vision |
|
No. |
Name |
Functions |
|
1 |
Sensor Interface |
Environmental temperature and brightness monitoring;Automatic brightness adjustment |
|
2 |
Ethernet Output |
RJ45, signal output, connecting with receiving cards |
|
3 |
Audio Output |
HIFI stereo output |
|
4 |
CONFIG Port |
Screen parameters setting; Program publishing |
|
5 |
USB Port |
Program updating through U disc |
|
6 |
LAN Port |
Access network |
|
7 |
Power Port |
DC12V |
|
8 |
WIFI interface |
Connect with WIFI antenna |
|
9 |
4G interface |
Connect with 4G antenna (optional) |
|
10 |
GPS interface |
Connect with GPS antenna (optional) |
|
11 |
Indicator Light |
Green light flashes when signal detected;Red light is bright when power is normal |
Unit: mm
