AVOE Stadium Perimeter LED Display Screen

Stadium Perimeter LED Display Screen

https://www.avoeleddisplay.com/sports-led-display-p-series-product/

The stadium LED display screen shows advertisements by playing videos, other than the traditional way of printing ads. Advertising from AVOE Stadium LED Display Screen brings high-definition videos with perfect visual enjoyment than just stiff card-boards and ads that stay still. Through the stadium LED display screens, which save costs from replacing advertising and other additional costs. AVOE Stadium LED Display Screen is designed with a unique structure that can be widely used as a ball game perimeter LED display screen, stadium LED display scoreboard, multi-functional sporting stadium LED display screen, etc.

https://www.avoeleddisplay.com/sports-led-display-p-series-product/

Adjustable Angle

AVOE Stadium LED Display Screen is equipped with an adjustable back bracket, which the stadium LED display screen can be adjusted to lean at any angle. A better view and more audience reached with the stadium LED display screen maximize the performance of advertising and increase the enjoyment of watching sports.

https://www.avoeleddisplay.com/sports-led-display-p-series-product/

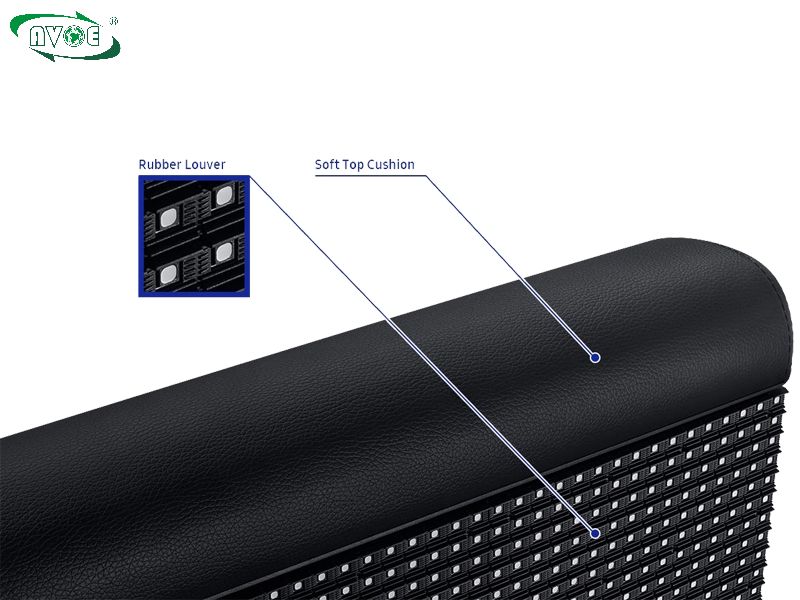

Soft Mask & Pillow

Soft module masks are equipped to protect players from being hurt when hitting on the outdoor LED display screen accidentally.

Soft pillows ensure protection from hitting the advertising screens. It is equipped on the top of each stadium LED display screen.

https://www.avoeleddisplay.com/sports-led-display-p-series-product/

Backup Signal & Power Solution

The stadium LED display screen will never be disconnected from meeting UEFA Technical Requirements. Equipped with dual signal, and dual supply solution.

https://youtu.be/gTl6VQA_D7k

Fast Maintenance

Only a 10-second replacement is needed for replacing the modules. Fast replacement and maintenance increase the cost-effectiveness.



Item P5  P6 P8 P10
Pixel Pitch 5mm 6.67mm 8mm 10mm
LED encapsulation  SMD2727  SMD2727/SMD3535 SMD3535 SMD3535
Scan Mode 1/8 Scan  1/8 Scan+1/6 Scan  1/5 Scan 1/2 Scan
Dual Signal&Power Support Support Support Support
Maintenance methods

Rear Service / Front Service(Optional)

Cabinet Material

Die Casting Aluminum/Steel(Optional)

Module Size(W*H)

192*192mm(P6)/320*160mm(P5/P6.67/P8/P10)

Cabinet Size(W*H*D)

768*768mm/960*960mm/Custom Size for Steel Panel

Refresh Rate

3840hz

Color temperature

10000K ±500(Adjustable)

Grey Scale

14-16bits

Cabinet Weight

31KG/Pieces(Die Casting Aluminium)/45KG(Steel)

Brightness(Nits/㎡)

6500nits-7000nits

Average Power Consumption

350-400Watt/㎡

Max Power Consumption

800Watt/㎡

IP Protection

IP67

Operating Temperature

-20°C to 50°C

Working Voltage

110-240Volt(50-60hz)
