Now outdoor digital advertising LED screen is popular,sometimes customer ask me how can I make a outdoor curved LED screen.

Before giving out our solution, especially before production, we would like to collect the following information:

1:Is it convex or concave curve?

2:Is it ellipse, semicircle, or 360 degree LED display?

3:What is the total length and height of the curved LED display?

4:What is the radian and radius? Please provide the accurate architectural drawing for our engineer to calculate correctly.

The distance from the LED display to the ground and the normal viewing distance? This helps to choose the product model based on the pixel pitch.

In addition, to install a curved LED display, the support structure needs to be customized according to the drawing of the LED display.

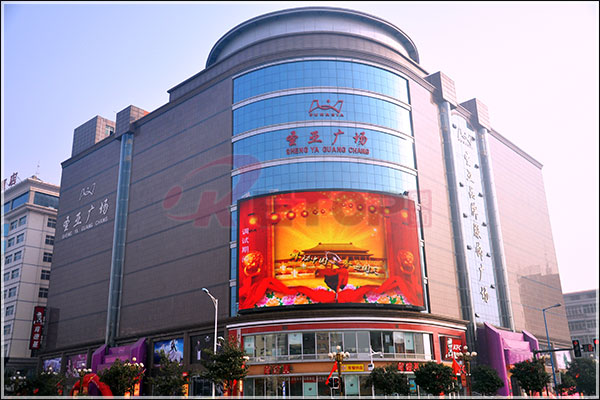

Below is our outdoor curved led screen new case for reference:

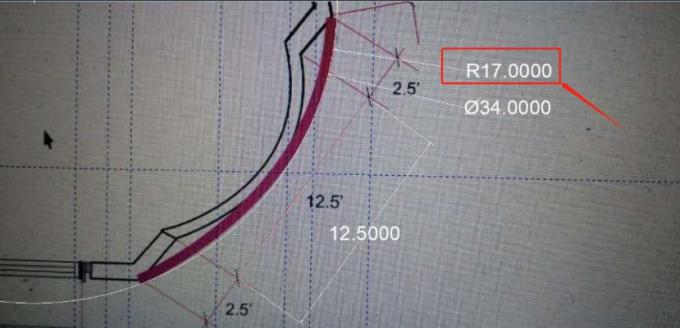

1. We should know the screen Radius

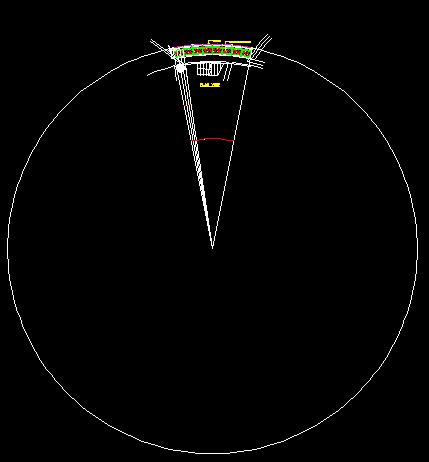

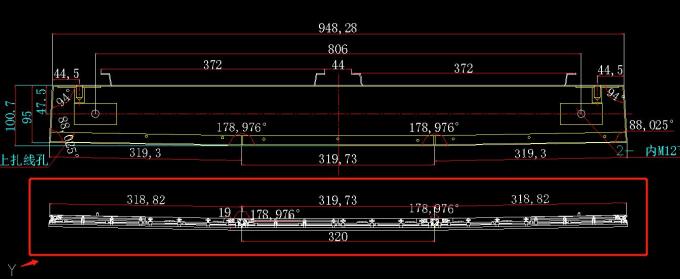

2.Then we using CAD figure out the cabinet should be make curved or not.

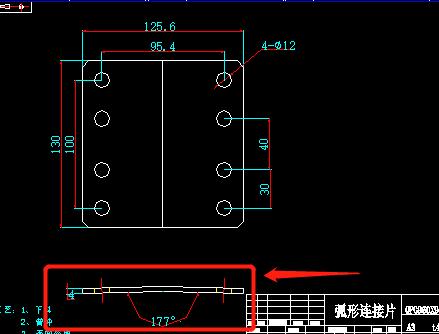

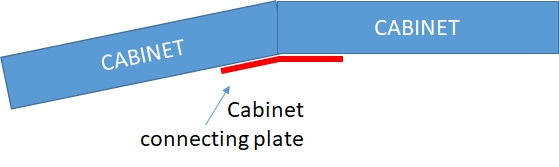

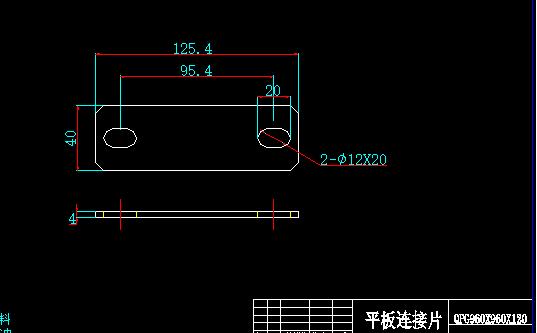

3. Also the plate for lock between the cabinet should be have curved one and flat one.

Plate degree is follow the cabinet degree.

In addition, to install a curved LED display, the support structure needs to be customized according to the drawing of the full color LED display.
