Outdoor Fixed LED Display C Series P6
1.Fast cooling: excellent heat dissipation performance to protect the modular circuit
2.Anti-interference: Special anti electromagnetic interference function
3.High strength: support the weight 3000kg through tension test, more strength than aluminum
4.Easy installation: installed by quick lock within 20 seconds only
5.High precision: seamless splicing through CNC machining
6.Good universality: can be processed according to module drawing, used for outdoor and indoor
7.High cost-effective: large-scale production, complete production and supply chain.
1. High Definition,wonderful visual performance.
2. High brightness ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
3. High resolution could guarantee superior performance even with small screen size.
4. High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
5. Super wide viewing angle can be visible in most corners, give you visual enjoyment.
6. SMD technology could guarantee higher flatness and better performance.
7. Aviation plug and quick lock is used, bringing easier cables connection and quicker assembly of cabinets to save time.
8. Low power consumption and fast heat dissipation with dual channel heat dissipation
9. Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans` speed monitoring, three-way voltage monitoring and temperature monitoring etc.
outdoor fixed advertising, shopping mall, DJ touring, theme resort, car show, fashion store, house of worship, window display, reception hall, opera house, wedding hall, events and conference. Supermarkets, home, office, school, warehouse, hospitals, production line , metro stations etc.
1. High quality;
2. Competitive price;
3. 24-hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
1. Pre-sales service
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipment maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
2.In-sales service
Production as per the order instructions
Keep all information updated
Solve customers questions
3. After sales service
Quick response
Prompt question resolving
Service tracing
4. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.
5. Service Mission
Answer any question;
Deal with all the complaint;
Prompt customer service
We have developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.
6. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we have already put forward solutions before you.
| Specification of P6 Outdoor Fixed LED Display | |||||
| Module | |||||
| Dimention (w*h) | 192x192mm | Resolution (w x h) | 32x32 | ||
| Pixel pitch | 6mm | Pixel Density | 27777 dots/㎡ | ||
| Pixel Configration | RGB 3-in-1 | LEDs Type | SMD3535 | ||
| Cabinet | |||||
| Dimensions(w* h)(mm) | 960*960mm | Module Quantity(PCS) | 25 | ||
| Physical Resolution (w x h) | 160*160 | Physical Pixels (total) | 25600 | ||
| Weight/Cabinet (kg) | 40 | Material | steel | ||
| Average Power/㎡(watts) | 300W | Max Power/㎡(watts) | 800W | ||
| Parameter | Value | ||||
| Brightness | ≥ 6000 cd/㎡ | ||||
| Viewing Angle | Horizontal 140(+70/-70) deg. Vertical 140(+70/-70)deg. | ||||
| Best Viewing Distance | 6-250meters | ||||
| Brightness Control | 256 level | ||||
| Gray scale | 14bits | ||||
| Refresh frequency | ≥ 1920Hz | ||||
| Driving mode | 1/8 scan constant current driving | ||||
| Input power frequency | 50 or 60 Hertz | ||||
| Input Voltage | 110 ～ 240 Volt | ||||
| Blind spot rate | ＜1/10000 | ||||
| Lifetime at 50% brightness | 100000 hours | ||||
| Ingress Protection | IP65/IP54 | ||||
| Operating temperature | ﹣20 ～﹢50 ℃ | ||||
| Operating humidity | 10％ ～ 90％ | ||||
| Control distance | CAT6 cable:＜100 m; Single mode fiber:＜10 km | ||||
| Signal input format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
| Operating system | Windows (2007/XP/Vista/7/8/10) | ||||

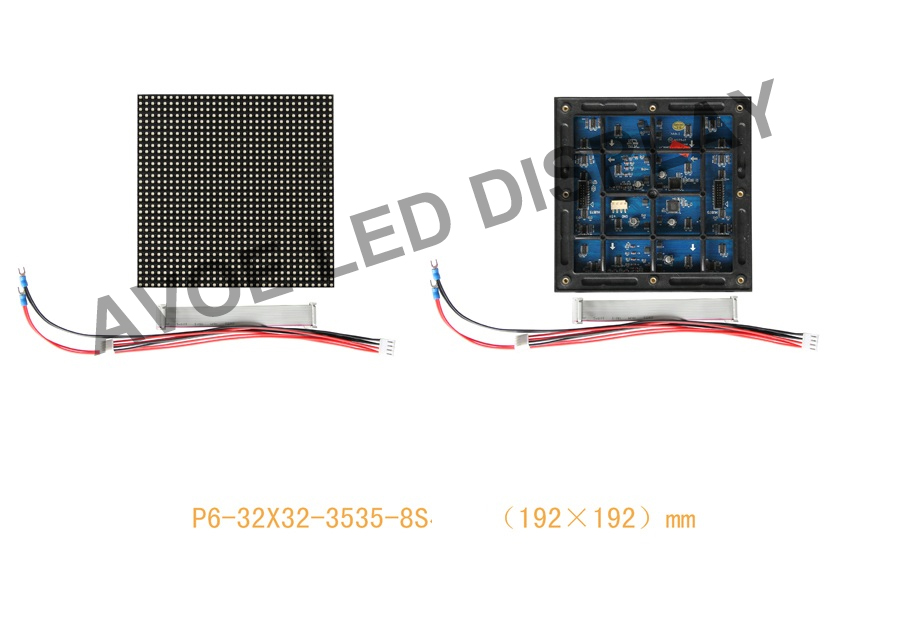

| Product pictures | |
 |
